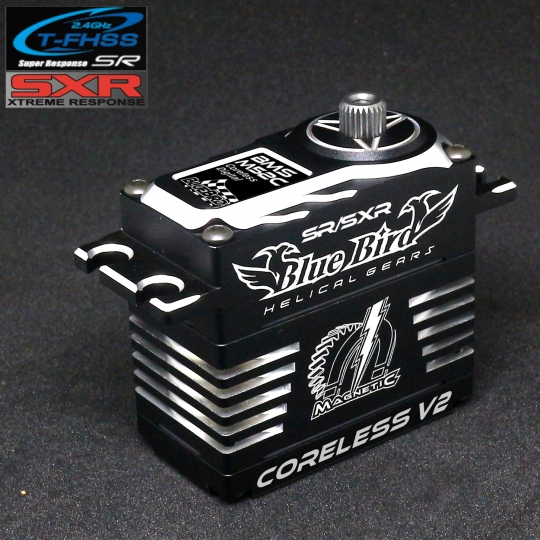

BMS-M52C V2 [$107.99-]
8.4V@61.5kg/854.2oz
8.4V@0.09sec
★ Magnetic Hall-effect Sensor W/ High-Efficiency Coreless Motor.

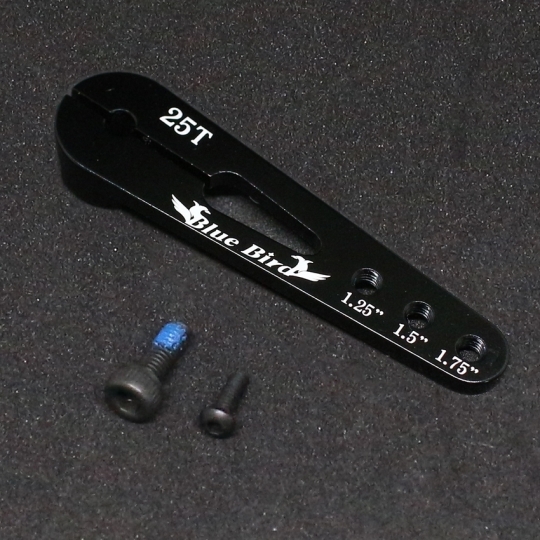

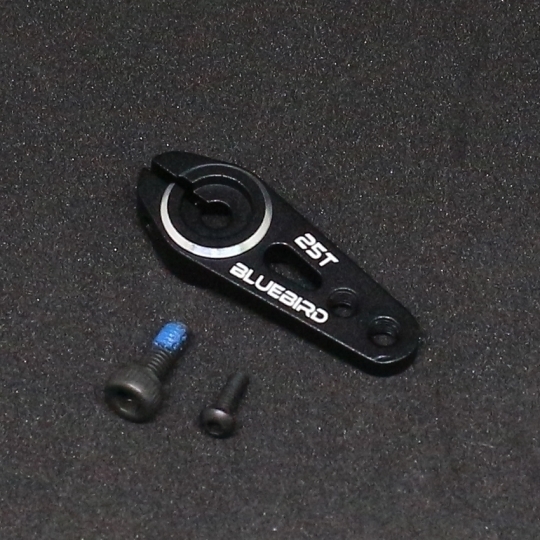

※ February of 2022 has been upgraded SR/SXR Dual-Mode functions. ( Including 1 piece of Lockable Aluminum Arm, 2 choose 1, Default: Airplane type.)
DETAILS
Application / Suitable
| Awesome smooth for 3D Aerobatic Airplane, Turbojet & 1/5、1/8th Monster / Crawler / Off-road Car & Helicopter. |
Electrical Specification (Function Of The Performance)
| Torque At 6.0V |
44.5 kg-cm / 618.1 oz-in |
| Torque At 7.4V |
54.2 kg-cm / 752.8 oz-in |
| Torque At 8.4V |
61.5 kg-cm / 854.2 oz-in |
| Speed At 6.0V |
0.13 sec / 60° |
| Speed At 7.4V |
0.11 sec / 60° |
| Speed At 8.4V |
0.09 sec / 60° |
Protection Mechanism
| Soft Start Protection |
Soft start back to neutral position. |
| Over Voltage Protection |
Over 9.0V drive the protection mode, and 8.4V return to normal mode. |
| Low Voltage Protection |
Lower than 4.0V drive the protection mode, and 4.5V return to normal mode. |
| Locked Rotor Protection |
Stall in 5 sec, output torque goes down. |
| Temperature Protection |
Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode. |
| Lose Control Protection |
When losing the transmitter signal, that servo will immediately be back to the neutral position and locked. |
Power Supply
| Operating Voltage Range |
4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible ) |
Control Specification
| Control System |
Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit )
Frequency：Up to 400Hz & 1500us or 1520us |
| Frame Rate (Signal repeat rate) |
Under 1ms【Compatible with Futaba_SR & Sanwa_SXR Dual-Mode】 |
| Dead Band Width |
0.001ms ( Default：1us) |
| Potentiometer (Variable Resistor) |
Magnetic Hall-effect Sensor【Non-Contact】instead of traditional VR. |
Mechanical Specifications

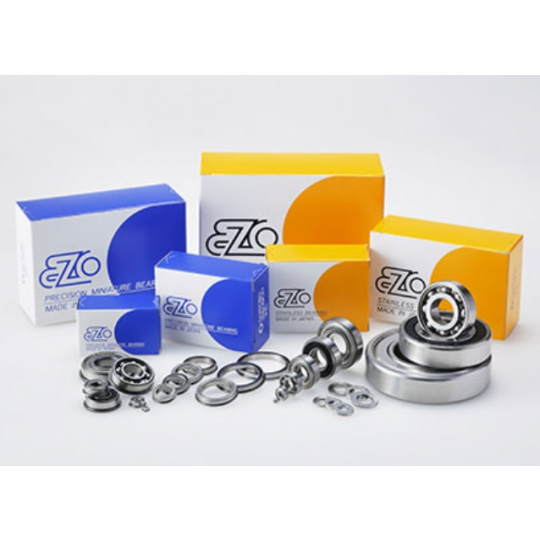

| Ball Bearing |
Soft start back to neutral position. |
| Gear |
All Stainless Steel Helical Gears |
| Outside Case |
Full One-Piece Aluminum CNC Casing |
| Motor |
Custom High-Efficiency Coreless Motor |
| Horn / Gear Spline |
25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) |
40.5 x 21 x 38.5 mm / 1.59 x 0.83 x 1.52 in |
| Weight (gram) |
83.0 ± 1 grams / 2.93 oz |
| Product Picture / Dimension Sketch |
.png) |
