Micro

BMS-127WV+ [$22.99-]

8.4V@5.3 kg / 73.6 oz
8.4V@0.05 sec
※ Begin from April of 2022, the performance has been upgraded and Dual ball bearings have been added.
DETAILS
Application
3D EP Aircraft, F3K, F3P & DLG, HLG.

Specifications
Torque At 3.7V 2.5 kg-cm / 34.7 oz-in
Torque At 6.0V 4.0 kg-cm / 55.6 oz-in
Torque At 7.4V 4.7 kg-cm / 65.3 oz-in
Torque At 8.4V 5.3 kg-cm / 73.6 oz-in
Speed At 3.7V 0.11 sec / 60°
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°

Power Supply
Operating Voltage Range 3.6V ~ 8.4V DC ( 1-2S HV Li-Poly / 2S Li-Fe Compatible )
Application / Suitable 3D EP Aircraft, F3K, F3P & DLG, HLG.

Control Specification
Control System Digital Controller 12-Bits ( 4096 Steps ) / Frequency:250Hz / Neutral:1500 or 1520us
Dead Band Width 0.002ms ( 2us )
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Rotating Direction Clockwise / When Pulse Traveling 1500 ~ 2100u second
Operating Travel 90° (When 1100 ~ 1900 μ sec)

Mechanical Specifications
Ball Bearing Digital Controller 12-Bits ( 4096 Steps )
Frequency:Up to 333Hz / Neutral:1500 or 1520us
Gear All Metal Gears
Motor Coreless Motor
Horn / Gear Spline 25 Teeth
Connected Cable Length 150 mm ( 5.9 in )
Connected Housing Universal Connector

Physical Specifications
Dimension (mm) 23.2 x 10 x 23 mm / 0.91 x 0.39 x 0.90 in
Weight (gram) 11.0 ± 0.5 grams / 0.38 oz

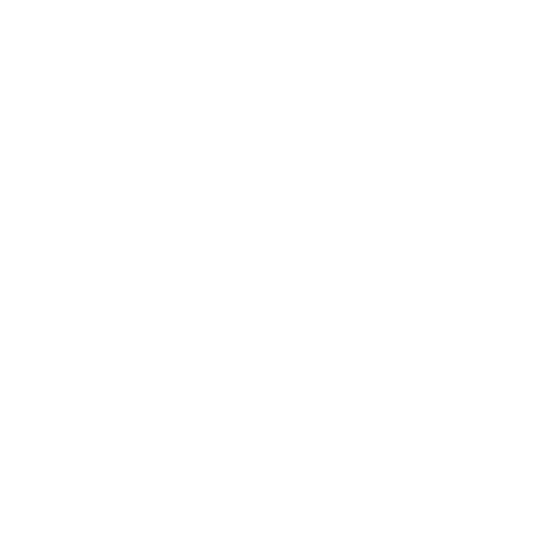

Product Picture / Dimension Sketch
