Slim Wing Servo

BMS-A56V

7.4V@8.6 kg / 119 oz
7.4V@0.12 sec
DETAILS
Application
Aircraft Glider ( Aileron )

Specifications
Torque At 6.0V 7.0 kg-cm / 97 oz-in
Torque At 7.4V 8.6 kg-cm / 119 oz-in
Speed At 6.0V 0.15 sec / 60°
Speed At 7.4V 0.12 sec / 60°

Power Supply
Operating Voltage Range 6V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2 Cell Li-Poly )

Slim Wing Servo
Control System Digital Controller
Dead Band Width 0.001ms ( 1us )

Mechanical Specifications
Ball Bearing Dual
Gear Titanium Alloy Gears
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Physical Specifications
Dimension (mm) 30 x 10 x 34.5 mm / 1.18 x 0.39 x 1.36 in
Weight (gram) 28.4 ± 1 grams / 1.0 oz

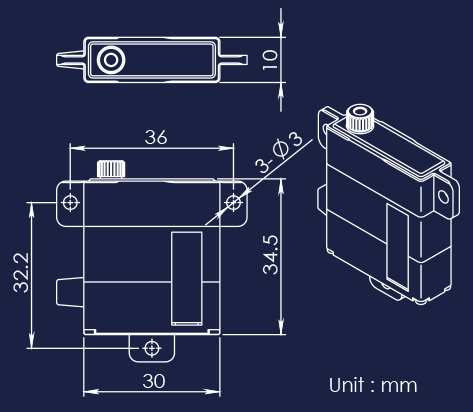

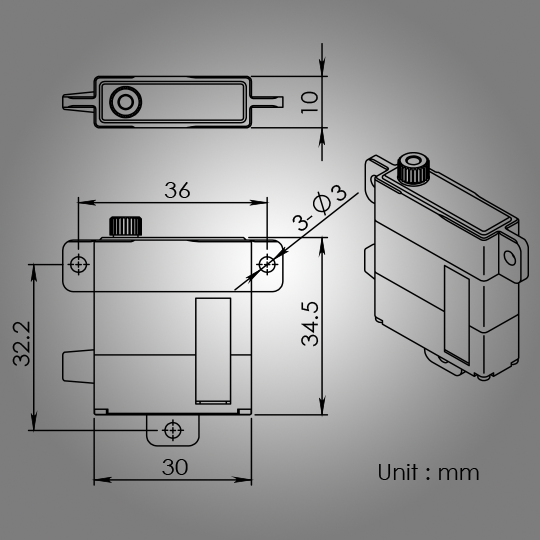

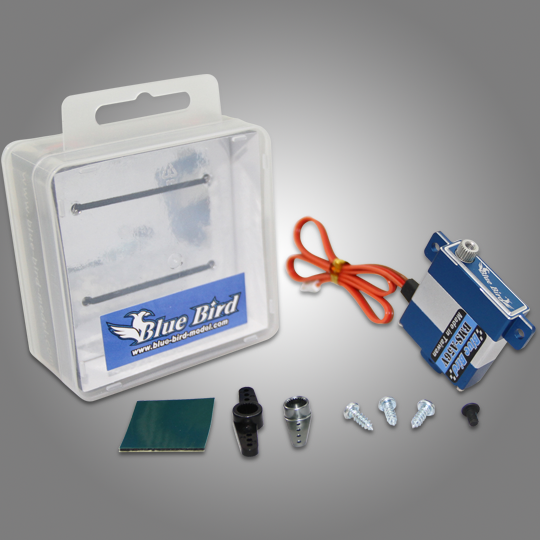

Product Picture / Dimension Sketch
