Low Profile Servo

BMS-991DMG

6.0V@6.5 kg / 90 oz
6.0V@0.07 sec
DETAILS
Application
1/10, 1/12 EP Buggy ( Off-road ), On-Road

Specifications
Torque At 4.8V 5.1 kg-cm / 71 oz-in
Torque At 6.0V 6.5 kg-cm / 90 oz-in
Speed At 4.8V 0.09 sec / 60°
Speed At 6.0V 0.07 sec / 60°

Low Profile Servo
Control System Digital Controller

Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor Coreless Motor

Physical Specifications
Dimension (mm) 40.6 x 21.0 x 25.4 mm / 1.6 x 0.83 x 1 in
Weight (gram) 45.0 ± 1 grams / 1.59 oz

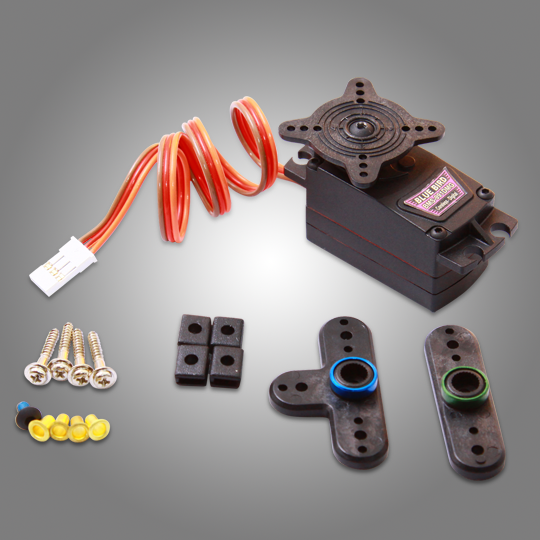

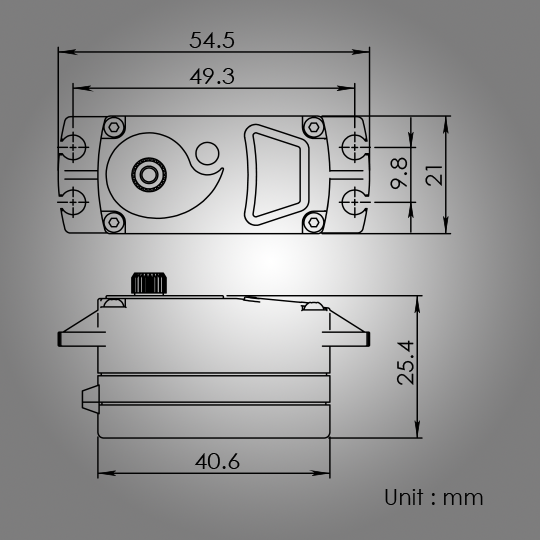

Product Picture / Dimension Sketch
